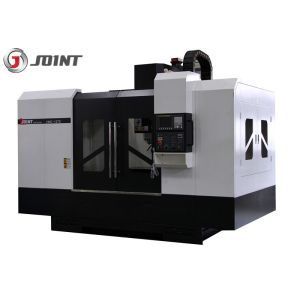

Customized Voltage Vertical CNC Machine Center BT40 45° Spindle VMC1060L3

    Buy cheap Customized Voltage Vertical CNC Machine Center BT40 45° Spindle VMC1060L3 from wholesalers

    Buy cheap Customized Voltage Vertical CNC Machine Center BT40 45° Spindle VMC1060L3 from wholesalers
    • Buy cheap Customized Voltage Vertical CNC Machine Center BT40 45° Spindle VMC1060L3 from wholesalers

    Customized Voltage Vertical CNC Machine Center BT40 45° Spindle VMC1060L3

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC1060L3
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Customized Voltage Vertical CNC Machine Center BT40 45° Spindle VMC1060L3

    Customized Voltage Vertical CNC Machine Center BT40 45° Spindle VMC1060L3


    Product description:


    The VMC1060L3 vertical machining center consists of main engine, CNC system, electrical control system, automatic lubricating system, cooling system, totally enclosed protective cover, automatic chip removal device (optional) etc.


    The machine has the X, Y, Z three axis linkage, in a clamping can finish milling, drilling, boring, expanding continuously, hinge, such as the internal and external screw thread processing a variety of rough and finish machining process.


    It is suitable for processing all kinds of high precision, working procedure, shape more complex parts, to provide users with complex parts processing and quick, perfect integration solutions.


    Product features:


    1. The Machine bode(i.e.:Base, columns, crossbeams and etc) are made of high grade cast iron.


    2. The layout of reinforcing rib plate analysis and calculated by rigid optimization,and with years of experience to set effective annealing process to eliminate residual stress, so that to keep machine accuracy stablely and effectively for a long time.


    3. The machine body and column structure made by casting,To improve the rigidity and long - term precision effectively.


    4. Adopt advanced working machine (large size imported gantry machining center and guide rail grinding machine), achieved required process accuracy, laid a good foundation for assembly.


    Specification Of Vertical machine center VMC1060L3


    ModelUnitVMC-1060L3
    TravelX axismm1000
    Y axismm600
    Z axismm600
    Distance between spindle and tablemm170-770
    Working tableTable sizemm1300*600
    Max. Load of tableKg800
    T slotPcs-mm-mm5-18-100
    Positioning accuracyX/Y/Z axismm0.008/0.008/0.008
    Repeated positioning accuracyX/Y/Z axismm0.006/0.005/0.005
    SpindleSpindle rotation speedRpm8000
    Spindle taperBT40
    DiametermmΦ150
    Rivet modelBT40 45°
    Rapid feedX/Y/Z axism/min30/30/30
    Cutting feedX/Y/Z axism/min10
    Tool magazineUmbrella typeSizeTools20
    Too changing time (T-T)Sec6
    Max. diameter/ length/weight of toolmm100/200/8
    Max tool diameter (no tool adjacent)mm180
    Arm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm80/200/8
    Max tool diameter (no tool adjacent)mm150
    Total capacity of electricKVA20
    Weight of machine

    Kg


    7500
    Dimensionmm3300*2690*2950

    Standard Accessories:


    Fanuc/Mitsubishi Controller system


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    Working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis rotary table


    Ring spray spindle
